• Steam System Modeler

click on thumbnail to zoom
Other products by Petrosof
Item #: ES-27759
Reg. Price: $345.00
Our Price: $345.00

Description  more details

The Steam System Modeler has been developed to perform complex steam and boiler system calculations that tend to be very tedious and error-prone when attempted by hand. The application uses the IF97 steam tables and performs mass and energy balance of all the units involved in the boiler system.

Steam is the essential backbone of in any oil and gas plant to fulfill the heating requirements and electrical generation of the plant. The steam system is the most critical utility system in any plant but especially oil and gas where numerous heat exchangers are in service.

Process engineers are often required to perform heat and mass balance across various steam system units for optimization and troubleshooting purposes. To perform accurate heat and mass balance, the steam tables are an essential part of the exercise. Hand calculation of heat and mass balance using steam tables manually is a complex and cumbersome process.

The Steam System Modeler application is designed and developed to accomplish heat and mass balance and steam optimization process calculations quickly and accurately.

Steam System Modeler application includes the following calculation tools:

Deaerator calculation

  1. De-superheater calculation

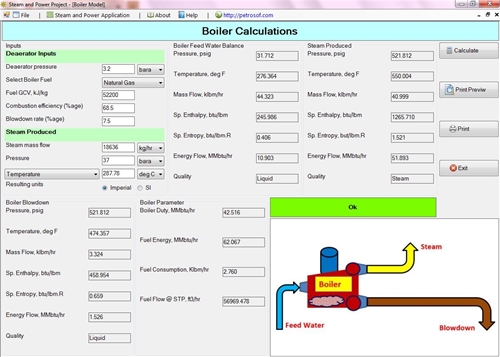

  2. Boiler
  3. Steam Turbine
  4. Deaerator
  5. Flash Drum
  6. De-Superheaters
  7. Pressure Let Down Stations
  8. Steam Piping Heating Loss
  9. Steam Heat Exchanger
  10. Steam Header Balance

Flexible data entry in either metric or English units.

You can print or save the application results to a PDF file.

Watch a video demo:
