• EngiLab Truss.2D 2022

click on thumbnail to zoom
Other products by Engilab
Item #: ES-27755
Our Price: $224.00
Quantity:


Description  more details

EngiLab Truss.2D is a powerful engineering software for the linear static analysis of plane (2D) trusses for Windows, offering also some design capabilities with relevant checks. The program features a fast, rich and intuitive user interface for pre-processing and post-processing. It uses the Finite Element Method (FEM) for its analysis purposes, with 2 Degrees of Freedom per Node.




DOWNLOAD DEMO PROGRAM

EngiLab Truss.2D Lite
functions as a limited demo of the PRO version.

Download the demo

MODELING CAPABILITIES

  • Linear Static Analysis of 2D Trusses
  • 2 Degrees Of Freedom (DOFs) per Node (X-, Y- Displacements)
  • Support for all major unit systems (Metric, Imperial US, Consistent, Custom)
  • Built-in Section Properties Calculator for most standard sections
  • Any type of constraints (DX, DY) and Springs (KX, KY)
  • Nodal Loads (FX, FY)
  • Uniform Loads (fX, fY), distributed to the joints as equivalent Nodal Loads
  • Body (Acceleration) Loads (e.g. self weight), distributed to the joints as equivalent Nodal Loads

ANALYSIS RESULTS - CALCULATIONS

  • Node Displacements: DX, DY, Total Displacement
  • Support Reactions: FX, FY, Total Reaction
  • Element Results: Force, Stress, Strain, Elongation, Strain Energy
  • Element Checks against Yielding (Stress) and Buckling
  • Full analysis report in Rich Text Format (RTF)
  • Analysis Validation: Global Equilibrium, Energy Conservation, Joints Equilibrium, Elements Equilibrium

USER INTERFACE - PREPROCESSING

  • Easily editable (with a text editor such as Notepad) .tr2d input file
  • Modern, easy-to-use and powerful User Interface
  • Import of DXF Drawings as Analysis Models

USER INTERFACE - PREPROCESSING OF ANALYSIS RESULTS

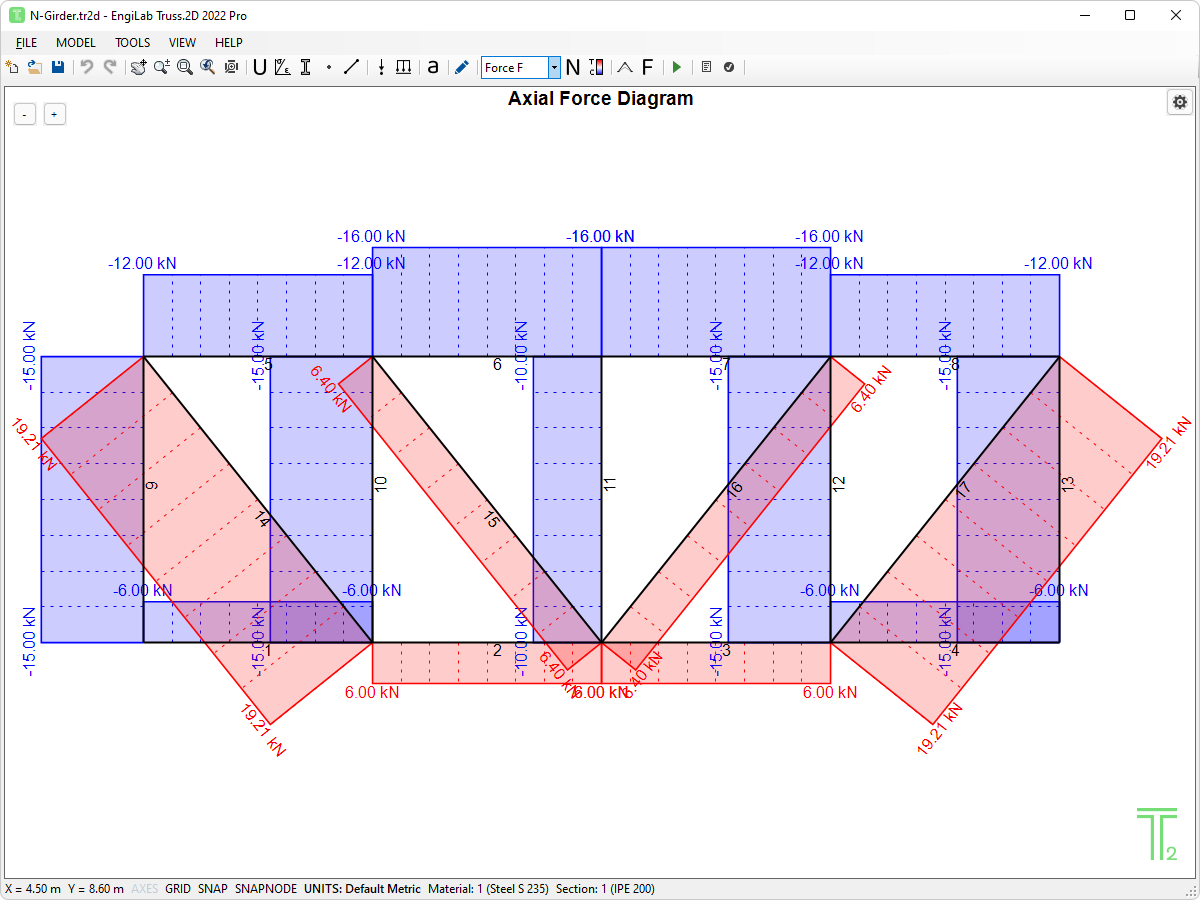

  • Drawing of Axial Force, Stress and Strain Diagrams
  • Drawing of Axial Force, Stress and Strain Color Plots
  • Drawing of the Model Deformation
  • Drawing of the Free Body Diagram
  • Automatic scaling of DIagrams and Deformation
